BRAND：DVP
feature:
lReversible monitor with control panel on each side
l Color LCD monitor & 256 magnification
l Large capacity internal battery
l Max. Wind velocity of 15m/s.
l 8 Sec. splice time, 40 Sec. tube-heat time
l Simultaneous X and Y views
l SYSTEM TEST ensures the best working condition
l User programmable
l Auto check fiber end face
l Auto calibrate parameters
l Store 8000 groups of splice results
l Multiple language options
Specifications:
|
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
|
Cladding diameter |
100 to 150um |
|
Coating diameter |
100 to 1000um |
|
Fiber cleaved length |
8-22mm |
|
Splicing mode |
Auto & Manual |
|
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Return loss |
≥60dB |
|
Tension test |
2.0N(200gf)(Standard) |
|
Protection sleeve length |
20mm, 40mm, 60mm |
|
Language |
English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
|
Interface |
RS232 interface & video output AC adaptor:85~260V input voltage |
|
Environment conditions: |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
|
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
|
Power supply |
Internal battery: 12V voltage, 10Ah, than 200 times of continuous splices and heats DC adaptor:12V voltage,optional multipurpose external battery |
|
Dimensions/Weight |
170(D)×170(W)×140(H)mm/3.3KG |
Standard Configuration:

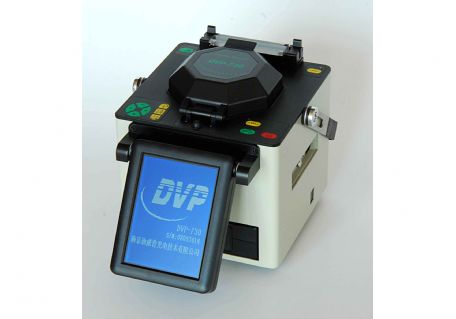

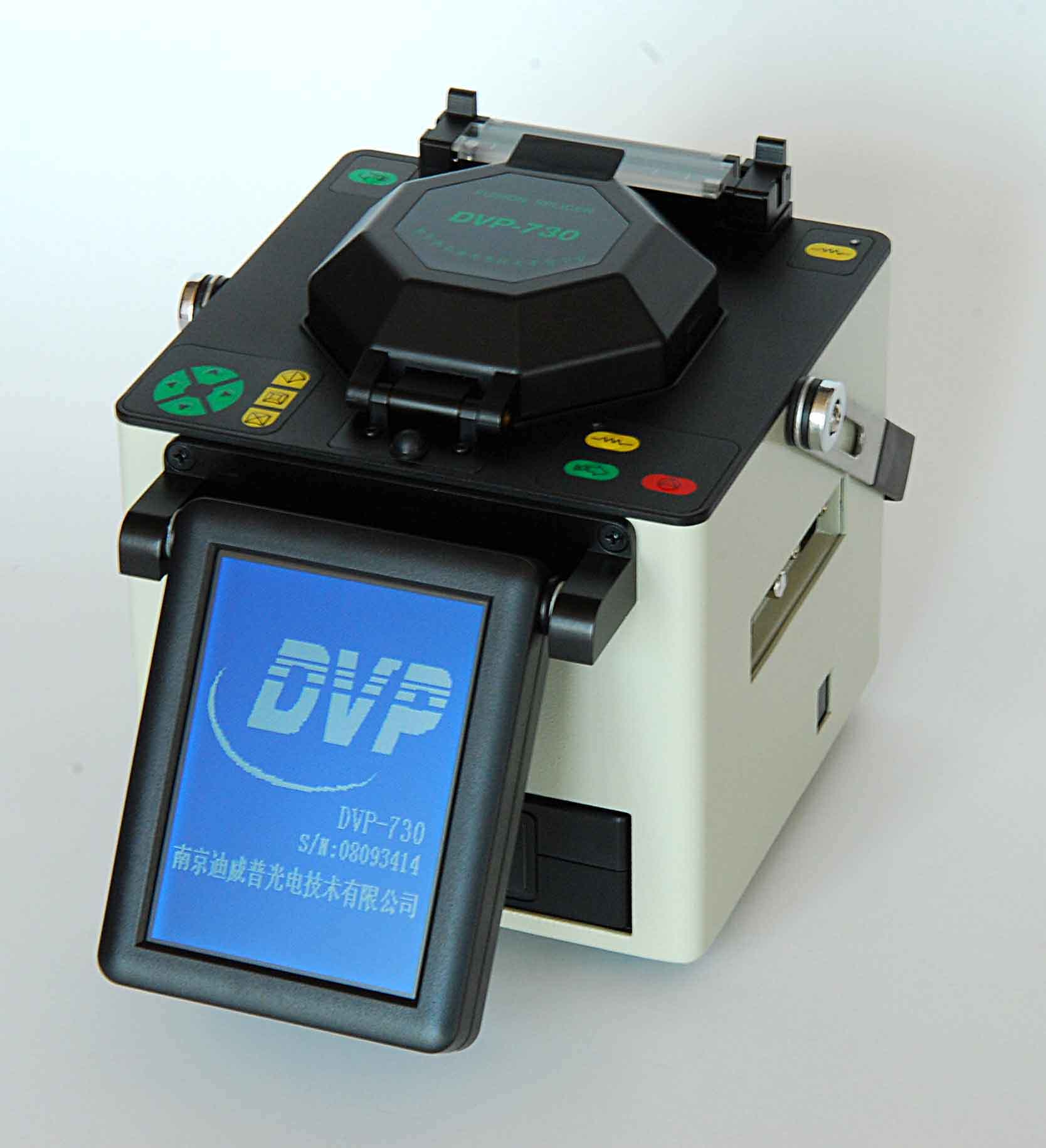

1. DVP-730 optic fusion splicer
2. DVP-105 Fiber Cleaver
3. Fiber Coat Stripper
3. Internal Battery
4. Charger, AC Power Cord
5. USB Flash Disk
6. Spare Electrodes (one pair)
7. Cooling Tray, Alcohol Pump Bottle, Blower Brush
8. Carrying Case
9. User's Manual.
