BRAND:VIAVI
The visual fault locator (VFL) is an essential tool that quickly and easily locates problem areas in fiber cables. By pinpointing the exact location of fiber damage, technicians can diagnose, troubleshoot, and fix the problem efficiently.
Locate sharp bends, breaks, and damages in fiber
Conduct end-to-end continuity tests
Perform fiber tracing and identification

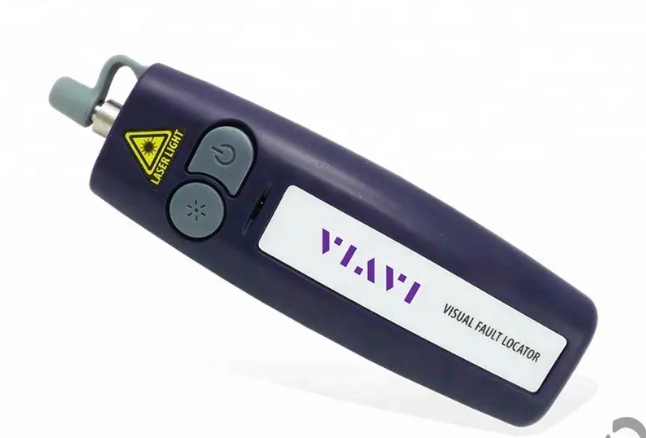

FFL-050/FFL-100 VIAVI visual fault locator Features
? Compact, ergonomic design for ultimate portability
? Visible wavelength is 650 nm
? High powered laser (1 mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
? Continuous or Flash illumination
? Universal connector interface for quick and easy connection
? 2.5 mm connector input (1.25 mm adapter available)
? Includes soft-sided carrying case with belt loop
FFL-050/FFL-100 VIAVI visual fault locator Application
? Locate sharp bends, breaks, and damages in fiber
? Conduct end-to-end continuity tests
? Perform fiber tracing and identification Benefits
? Easy-to-use
? Quickly and easily locate damage in optical fiber
? Continuous and Flashing illumination modes
? Economically priced
? Ruggedized and designed for demanding field use
? Long-lasting battery life
? Protective rubber end cap
FFL-050/FFL-100 VIAVI visual fault locator Specifications
|
|
FFL-050 (Pocket-sized) |
|
Dimensions |
11.4 x 3.5 x 2.0 cm (4.5 x 1.4 x 0.8 in) |
|
Weight |
46 g (1.6 oz) with two AAA batteries |
|
Fiber Compatibility |
Single-mode, Multimode |
|
Wavelength |
650 nm (visible) |
|
Laser Safety Rating |
Class II |
|
Output Power |
1.0 mW max |
|
Output Modes |
Continuous and flashing |
|
Range |
> 7 km single-mode ; > 5 km multimode |
|
Connector Interface |
Universal 2.5 mm (fixed) Universal 1.25 mm adapter |
|
Controls |
ON/OFF Continuous/Flashing |
|
Battery Type |
Two AAA |
|
Battery Life |
30+ hours on continuous |
|
Carrying Case |
Soft-sided with belt loop |
|
Safety |
1992, EN 61010-2, CE |
|
Warranty |
1 year |
