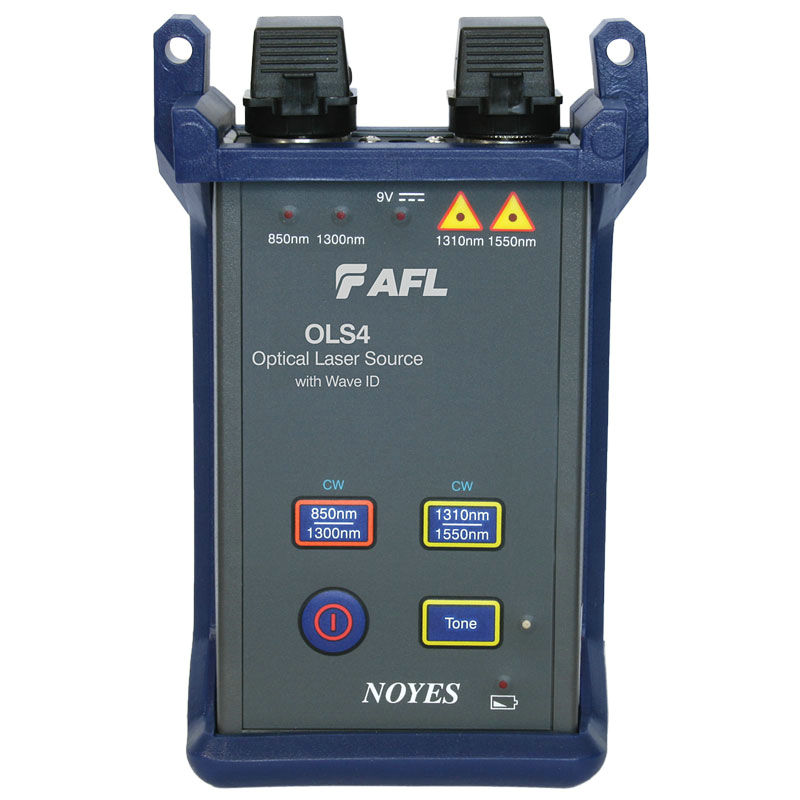

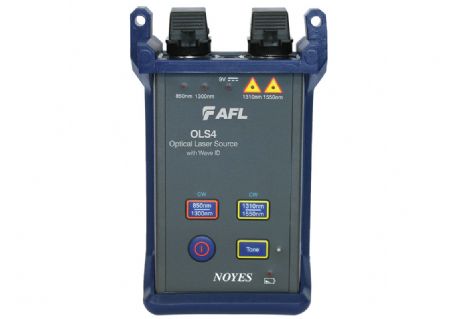

OLS4 Quad NOYES Light Source
Brand：NOYES
Model: OLS4
Model: OLS4
Information
OLS4 Laser Source
OLS4 Laser Source Features:
- 5-Year Product Warranty
- 3-Year Recommended Calibration Interval
- Integrated LED and Laser light source
- 2 kHz Tone for use in Fiber tracing / locating
- 50μm and 62.5μm mandrels included
NOYES OLS4 from AFL is a hand-held, rugged, integrated two-port LED and LASER light source designed for performing insertion loss measurements on multimode or single-mode fiber optic links when used with an optical power meter. The LED and LASER outputs are stabilized to ensure accurate test results per current TIA/EIA requirements.
Equipped with industry standard 2 khz test tone, the OLS4 from AFL is an ideal tool to pair with an optical fiber identifier (OFI-200D) for use in fiber identification.
Equipped with industry standard 2 khz test tone, the OLS4 from AFL is an ideal tool to pair with an optical fiber identifier (OFI-200D) for use in fiber identification.
OLS4 Output Ports:
- Multimode output port; 850/1300 nm LED output at CW, WaveID, or dual wavelength WaveID
- Single-mode output port; 1310/1550 nm LASER output at CW, WaveID, dual wavelength WaveID, or 2 kHz Tone
Faster Test Times with WaveID – In WaveID mode, the NOYES OLS4 encodes each wavelength with a unique WaveID code. When used with a NOYES power meter, the pair can send and receive two wavelengths each test – doubling testing efficiency – reducing test time!
Flexible Output Connector Adapter Design
The OLS4 output ports are equipped with UCI based removable adapters to allow the output connectors to be inspected and cleaned, while allowing field change of output style between FC, SC, ST, and LC connector adapters.
50 and 62.5 μm fiber mandrels Included
Mandrels condition test cable for use in certifying both 50 and 62.5 μm fiber links for current and planned high bit rate applications including Gigabit Ethernet and 10 Gigabit Ethernet. Mandrels apply to launch jumpers is seconds without tools and ensure loss measurements comply with TIA/EIA-568-B standard.
The OLS4 is fully N.I.S.T. traceable.
Key Specifications
- MM Optical Port Wavelengths: 850 and 1300 nm
- MM Output Power: > -20 dBm, 62.5 μm multimode
- SM Optical Port Wavelengths: 1310 and 1550 nm
- SM Output Power: 0 dBm, 9 μm single-mode
- Output connector: FC, SC, ST, LC switchable (One style supplied with unit, order others separately)
- Battery: 2 x AA Alkaline, optional AC adapter
Ordering Information
Model Number: OLS4
Accessories and Connector Adapters
|
Model
|
Description
|
|
2900-50-0002MR
|
FC adapter
|
|
2900-50-0003MR
|
SC adapter
|
|
2900-50-0004MR
|
ST adapter
|
|
2900-50-0006MR
|
LC adapter
|
|
8800-00-0072PR
|
Universal flip-top dust cap for UCI outputs
|
|
4050-00-0119PR
|
100-240 VAC to 9 VDC
|
