BRAND：shinewaytech
-

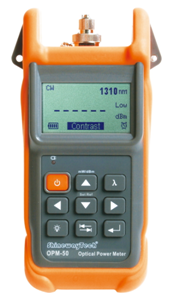

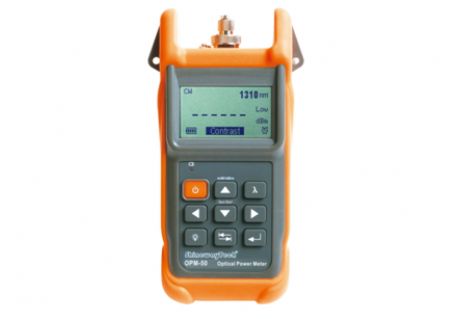

OPM-50 Intelligent Optical Power Meter
u Automatic wavelength identification
u Remote reference value setting
u FTTx applicable
u Internal clock & fiber S/N editable
u Memory of 1000 test records
u Data Transfer to PC via USB
u USB power charging
u No warm-up, quick start
u Backlight
u 70 hours continuous operation
u Pocketsize, lightweight and easy-to-use
u CE FCC certificates
OPM-50 paired with SLS-50 Intelligent Stabilized Laser Source can be used to identify fiber, measure attenuation and loss, verify continuity and evaluate fiber link transmission quality.
Automatic Wavelength Identification
Compatible with the digital encryption protocols of SLS-50, OPM-50 can automatically identify the wavelength of the optical signals transmitted from SLS-50 and switch to the corresponding test mode, which greatly reduces the workload at both ends and avoids potential error.
Remote Reference Value Setting
OPM-50 can receive the power parameters of digital-encrypted signal transmitted from SLS-50 as reference for precise link loss measurement even the two units are far apart.
Internal Clock & Fiber S/N Editable
Internal clock enables OPM-50 to save test data with time and editable fiber SN information.
Compatible with FTTx Test
OPM-50 can be applied to measure Triple-play signals (1310nm, 1490nm and 1550nm) on Passive Optical Network (PON).
Specifications
|
Model |
OPM-50 |
|
|
A |
B |
|
|
Calibrated Wavelength(1) |
850,1300,1310,1490,1550,1625nm |
|
|
Power Range (dBm)(2) |
-70 ~ +10(1) |
-50 ~ +27 |
|
Fiber Type |
Singlemode/Multimode fibers |
|
|
Detector Type |
InGaAs |
|
|
Accuracy |
±5% ±0.01nW (±0.5dB@850nm) |
±5% ±1nW (±0.5dB@850nm) |
|
Resolution (dB) |
0.01 |
|
|
MOD Identification |
270, 1K, 2K Hz |
|
|
Auto Wavelength Identification |
Yes (With SLS-50) |
|
|
Display Unit |
W/mW/μW/nW/pW/dBm/dB(REF) |
|
|
Data Storage |
1000 records |
|
|
Connectivity |
USB |
|
|
Connector(3) |
FC (Interchangeable SC/ST) |
|
|
Power Supply |
Lithium Battery/ AC Adapter |
|
|
Battery Life |
Continuous operation: 70 hours, Standby: 140 hours |
|
|
Power Saving |
Auto-off after 5 minutes idle |
|
|
Operating Temperature |
0oC ~ 50oC (32 ~ 122 F) |
|
|
Storage Temperature |
-20oC ~ 70oC (-4 ~ 158 F ) |
|
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
|
Weight |
315g (0.69 lbs) |
|
|
Dimensions (H × W × T) |
177×80×44mm (6.97×3.15×1.73 inch) |
|
Note: (1) Other wavelengths are open for customization;
(2) For Model A at 850nm, the lower limit of measurement range is -60dBm (Model A) / -40dBm (Model B);
(3) OPM models with Ф1000μm detector are available with: FC/SC/ST/DIN/E2000/LC/Universal
1.25mm/Universal 2.5mm connectors.
* Specifications subject to change without notice
Ordering Information
Standard Package Includes:
Instrument, Lithium battery, AC adapter, USB cable, OPM data analysis software CD, Soft carrying case, Warranty card, CE certificate, Certificate of calibration, User manual.
