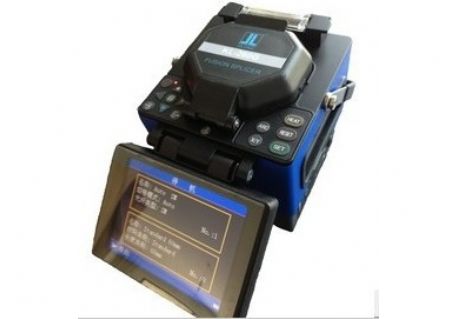

BRAND：JILONG
Features:
Core to core alignment by PAS technology
(PAS:Profile Alignment System)
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto check quality of cleaved end face
Display fiber cleaved and offset angle
5.7 inch color LCD monitor with clear digital image display
USB interface
Software upgrade via USB interface
Specifications:
|
Applicable fibers |
SM MM DS NZDS |
|
Fiber diameter |
Cladding diameter:80-150μm; Coating diameter:100-1000μm |
|
Fiber count |
Single |
|
Fiber cleaved length |
12-16mm (Coating diameter:250μm) |
|
Actual average splice loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
|
Typical splicing time |
Typical 9 sec (standard SM fiber) |
|
Return loss |
>60dB |
|
Splicing mode |
Auto Calibrate Normal Special |
|
Fiber aligning method |
Meticulous,Core,Clad,Manual |
|
Splicing program |
53 (templet), 40(user) |
|
Tube heating program |
9 (templet),24(user) |
|
Tube typical heating time |
Typical 30 sec |
|
Protection sleeve length |
60mm, 40mm |
|
Storage of splice result |
4000 results, 20 parameter per result |
|
Fiber image magnification |
300X (X or Y view),150X (X and Y view) |
|
Battery capacity |
Typical 150 cycles (splice/tube heat with inner Li-battery) |
|
Monitor |
5.7 inch color LCD monitor |
|
Tension test |
2N |
|
Electrode life |
2500 |
|
Terminal |
USB |
|
Power supply |
AC 100-240V with AC adapter Inner Li-battery ( 7800 mAH) |
|
Operating condition |
0-5000m above sea level, -10-50°C Max wind velocity of 15m/s |
|
Dimension |
150mm(L)×150mm(W)×150mm(H) |
|
Weight |
2.55Kg excluding battery,3.05Kg including battery |
