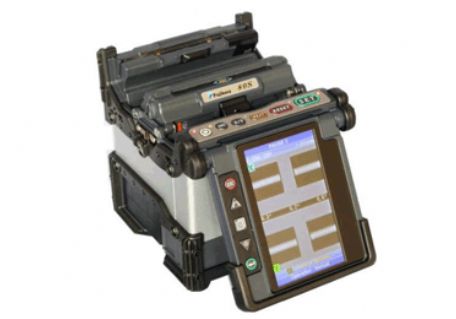

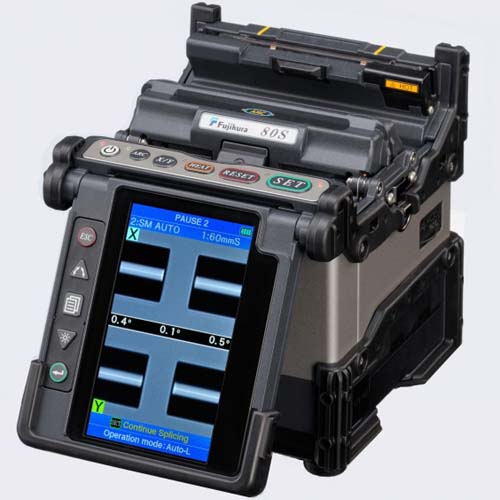

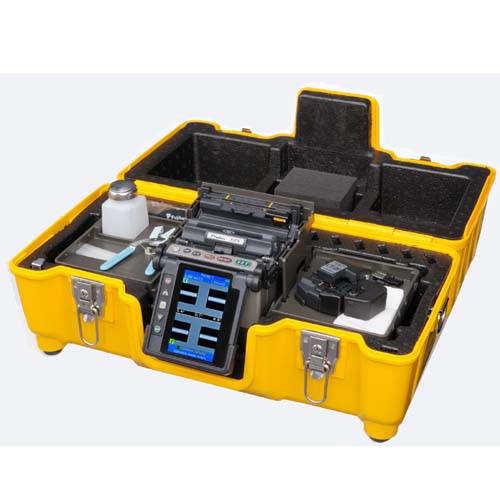

Applicable fibres
|
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
NZDS (ITU-T G.655),Others
|
|
Fibre Count
|
Single
|
|
Cladding diameter
|
80 to 150μm
|
|
Coating diameter
|
100 to 1000μm
|
|
Fibre cleaved length
|
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
|
|
Actual average splice loss
|
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
|
|
Splice time
|
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
|
|
Return loss
|
60dB or greater
|
|
Splicing modes
|
100 splicer modes are available
|
|
Splice loss estimate
|
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
|
|
Attenuation splice function
|
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
inline fixed attenuator
|
|
Storage of splice result
|
The last 2000 results to be stored in the internal memory.
|
|
Magnification
|
X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
|
|
Viewing method
|
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
|
|
Tension test
|
1.96 to 2.25N
|
|
Operating condition
|
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
|
|
Tube heater
|
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
|
|
Tube heat time
|
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
|
|
Applicable protection
sleeve length
|
60mm, 40mm and a series of micro sleeves.
|
|
No. of splice/heating
with battery
|
200 times of splicing and heat shrinking under with BTR-09
|
|
Power supply
|
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
|
|
Terminals
|
USB2.0 ( Mini-B) for data and video signal transfer to PC.
|
|
Wind protection
|
Up to 15m/s wind velocity
|
|
Dimensions
|
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot
|
|
Weight
|
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
|
|
Electrode life
|
3000 arc-discharges
|
